Tech Specifications:
Technical Information
-
API Support: DirectX 12 Ultimate, OpenGL 4.6
-
Number of Supported Monitors: 4
-
Maximum Digital Resolution: 7680 x 4320
-
AI-Powered: Yes
-
Features: Dual-fan Cooler, Super Alloy Power
Processor & Chipset
-
Chipset Manufacturer: Intel
-
Chipset Line: Arc
-
Chipset Model: B570
-
GPU Clock Speed: 2.60 GHz
Memory
-
Standard Memory: 10 GB
-
Memory Type: GDDR6
-
Memory Bus Width: 160-bit
Interfaces/Ports
-
Interface: PCI Express 4.0 x8
-
DisplayPort Outputs: 3
-
HDMI Outputs: 1
Power Requirements
-
Recommended Power Supply: 600W
-
Power Connector: 1 x 8-pin
Physical Characteristics
-
Form Factor: Plug-in Card
-
Slot Space: Dual
-
Cooler Type: Fan Cooler
-
Dimensions (HxWxL): 1.6″ x 5.2″ x 9.8″
-
Weight: Approx. 1.59 lb
Miscellaneous
-
Package Contents:
-

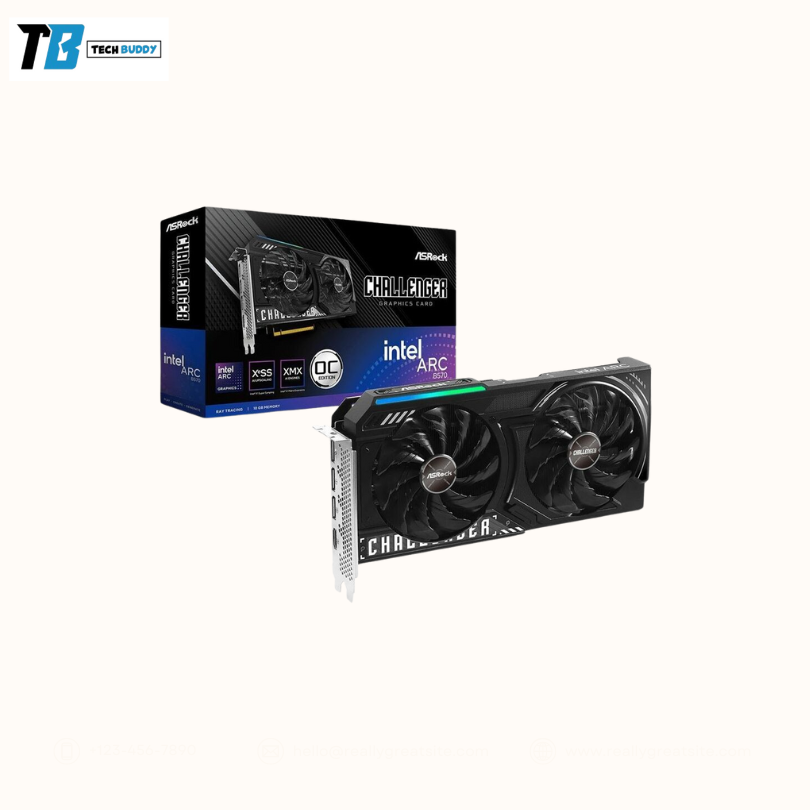

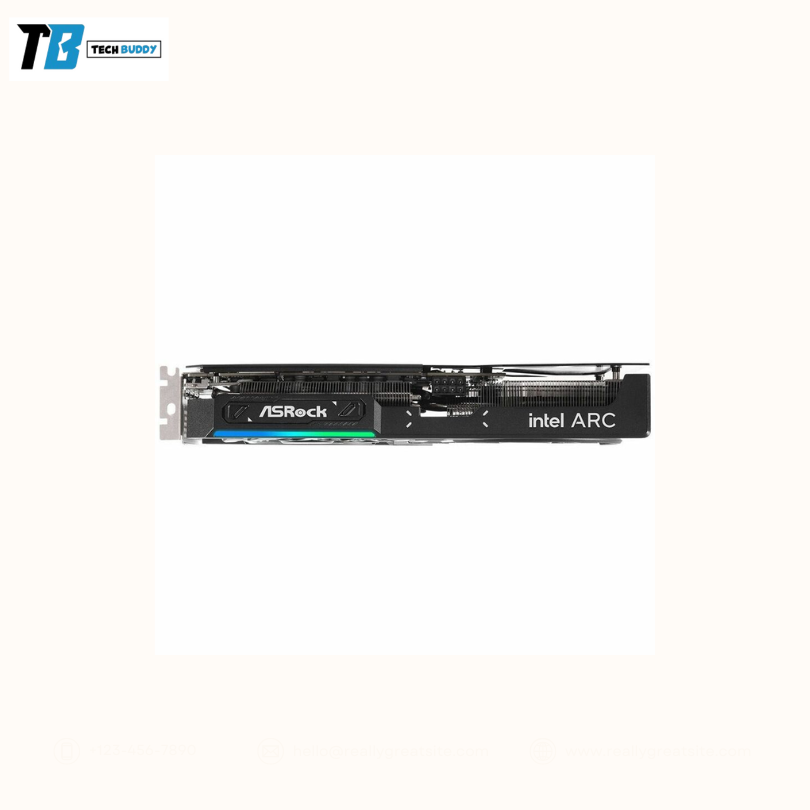

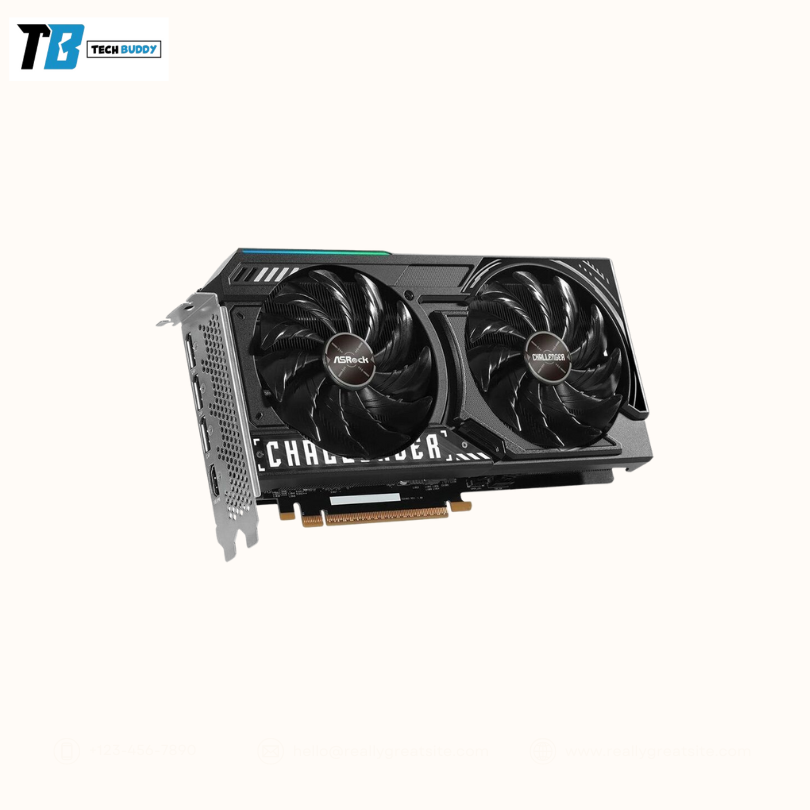

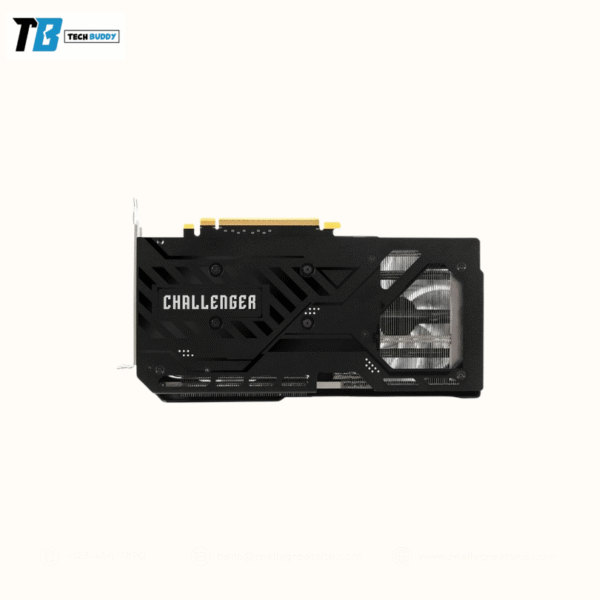

Intel Arc B570 Challenger 10GB OC Graphics Card
-
Quick Installation Guide
-
-
Platform Supported: PC
